Views: 0 Author: Site Editor Publish Time: 2022-12-29 Origin: Site

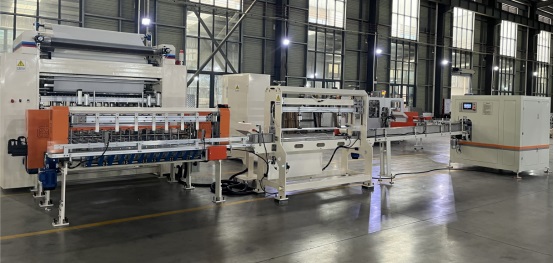

7 lines fully automatic facial tissue production line with automatic transferring
This production line includes the following machines:
1, folding machine with or without glue lamination. With automatic separator for long log facial tissue.
2, automatic log saw cutting machine.
3, soft packing machine for single pack.
We can also make the machines according to your requirements. welcome to send us inquiry.
The video link in Youtube is https://youtu.be/j5LH3AD7F54
About the new design automatic separator
It adopts 4sets servo controlling, can achieve automatic separating.
All sub-stack slides adopt imported linear bearings, and adopt double-shaft structure to ensure the stability of each sub-stack part.
All parts are aluminum alloy and processed by CNC machining center to ensure the accuracy of sub-stacking.
Using high-precision encoder to track the paper pieces, make sure each stack is same.
The number of draws is set on touch screen, can 100% accuratly adjust the draws(set based on even draws).
Max sub-stacking 12 logs/min.
About the V folding color lamination facial tissue machine
Main function:
V folding color lamination facial tissue machine process paper material after embossing,cut off,interfold become V fold,The products are widely used in hotels, office, kitchen and so on.
It's convenient and health.This machine can fold, slit,count with high speed and output orderliness.
Main features:
The paper-breaking knife roller adopts the structure of spiral knife roller, which effectively solves the problems of the stability of the paper-breaking and the service life of the blade.
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller.
The original straight knife is a full-cut type, while the spiral knife roller is a point-cut type, which solves the problems of the instability of the paper break and the short service life of the blade caused by the original straight knife structure.
Main parameters:
Design speed：100m/min
Stable production speed：70-80m/min，or max sub-stacking speed 6-12 logs/min
Common jumbo roll width：1400mm-1500mm
Estimated daily output：about 7.5T/day (Note：jumbo roll is three layers, 15g/m², for 22hours production per day）
Capacity calculation (example of calculation method):
Paper gsm :15gsm, 6 layers, jumbo roll width 1400mm, efficiency coefficient: 65%, production time: 22h, production speed: 70m/min, number of machine: 1 set
Capacity:
70 (m/min)*1.4 (m) *15 (g/㎡) *6 (layers) *60 (minute) *22 (hours) *1 (unit)*0.65÷1000000
=7.5 (tons)
Note：The above output calculation is for reference only. The specific capacity is related to the jumbo roll gsm,jumbo roll characteristics, product specifications and the specific conditions of each company.
Jumbo roll layer：2-3layers
Jumbo roll：Straw pulp paper, wood pulp paper, sugarcane pulp paper, bamboo pulp paper and so on.
GSM of jumbo roll：two ply, gsm of each ply is 14-18g/㎡; three ply，gsm of each ply is 13-15g/㎡
