JY-JTZ-JX
Jingyi
8441.8090

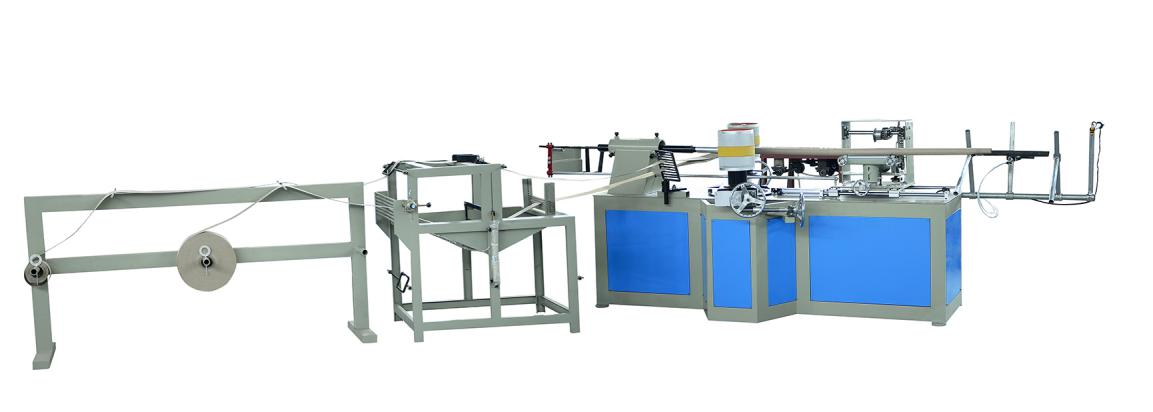

Functions and features:
1. This is a preferred equipment for producing core for toilet paper, plastic PE film and N.W. to use.
2. Inverter control to ensure the accuracy of the roll core tube length
3. Automated online gluing,tube rolling and cut off
4. Product diameter and length can be customized according to customer needs
5. The machine is reasonable designed, easy for operation and convenient maintenance
Main technical parameters ：
Design speed | 20 m / min |
Stable speed | 18 m / min |
Kraft paper width | 50~70mm |
Paper Tube diameter | 25mm~100mm(can be customized) |
Paper tube layers | 2 ~ 5 layers(choose by customer) |
Kraft paper gsm | 200-400 gsm |
Roll core Length | adjustable (maximum: 3m) |
Defect rate | ≤2% |
Voltage | 380V 50HZ |
Power | 4.0KW |
Overall Size | Main machine 2950×1700×1800mm Glue tank device 1250X850X1200mm |
Weight | 1500Kg |
