JY-SPZ-ZD200/210
Jingyi
8441.8090

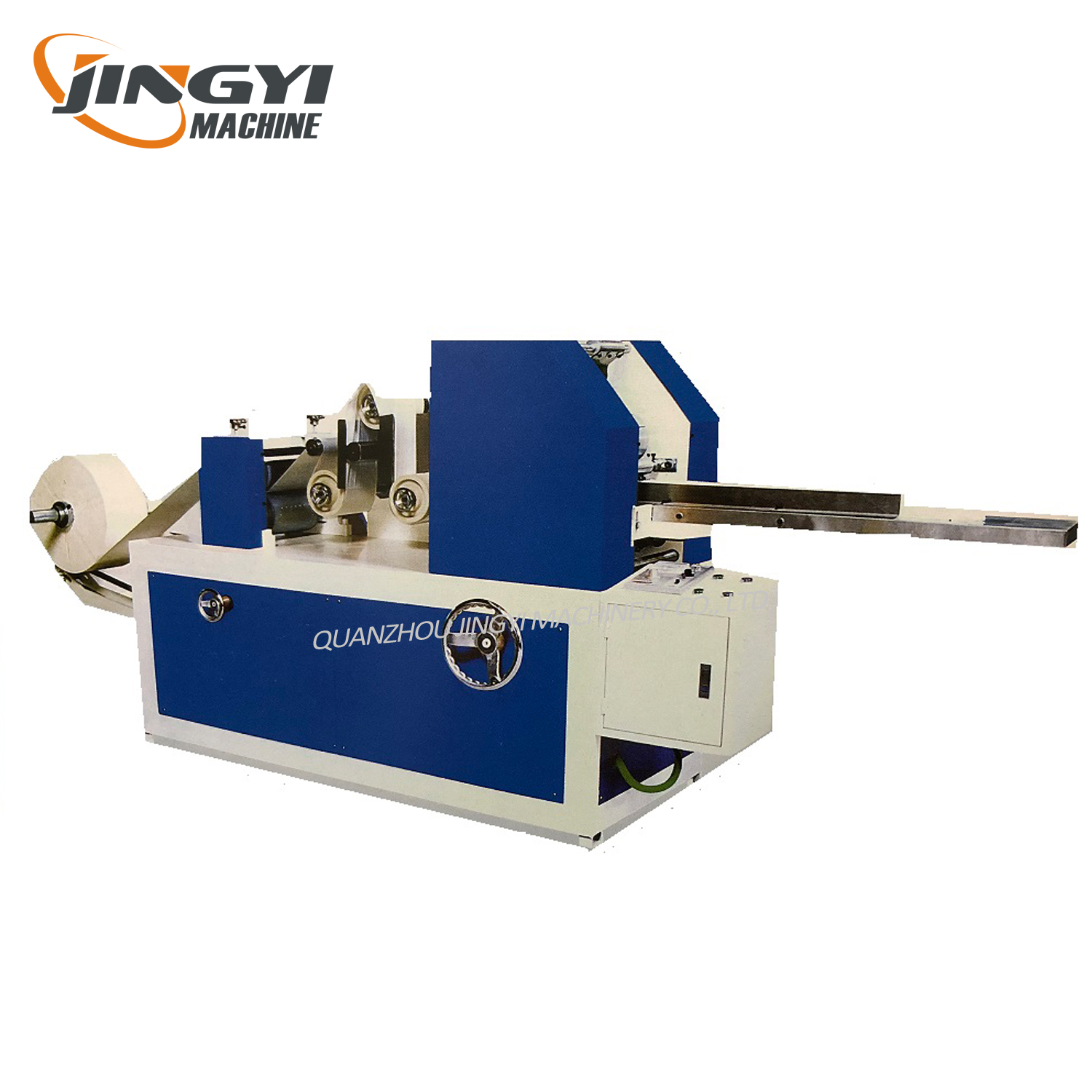

Vacuum Mini Face Tissue Paper Handkerchief Making Machine
Machine Function & Character:
This machine folding handkerchief paper through vacuum absorption, under embossment and cutting, the tissue is auto-folded into mini type and portable handkerchiefs paper. This machine is stable in running, fast in speed and trim in folding.
The machine adopts adsorption type folding, ensure products beautiful result
With auto counting unit, can count 10pcs one row and separate each row, convenient for packing.
Main Technical Parameter:
| Finished products unfolded size | 200(L)x200(W)±2mm 210(L)x210(W)±2mm (other sizes can be ordered) |
| Folded products size (mm) | A. L×W =75×52mm, B. L×W =105×52mm; |
| Jumbo roll width | 200mm, 210mm as machine model choosen |
| Jumbo roll diameter | ≤1200mm |
| Jumbo roll inner diameter | 76.2mm (3inches) |
| Production speed | 500~600 pcs/min |
| Embossing unit | Steel to paper roller, steel to rubber roller, steel to steel roller |
| Power | 3kw (380V, 50Hz) |
| Machine dimension | L×W×H=3.8×1.0×1.5m |
| Weight of equipment | 1.0T |
