JY-MJZ-FT
Jingyi
8441.8090

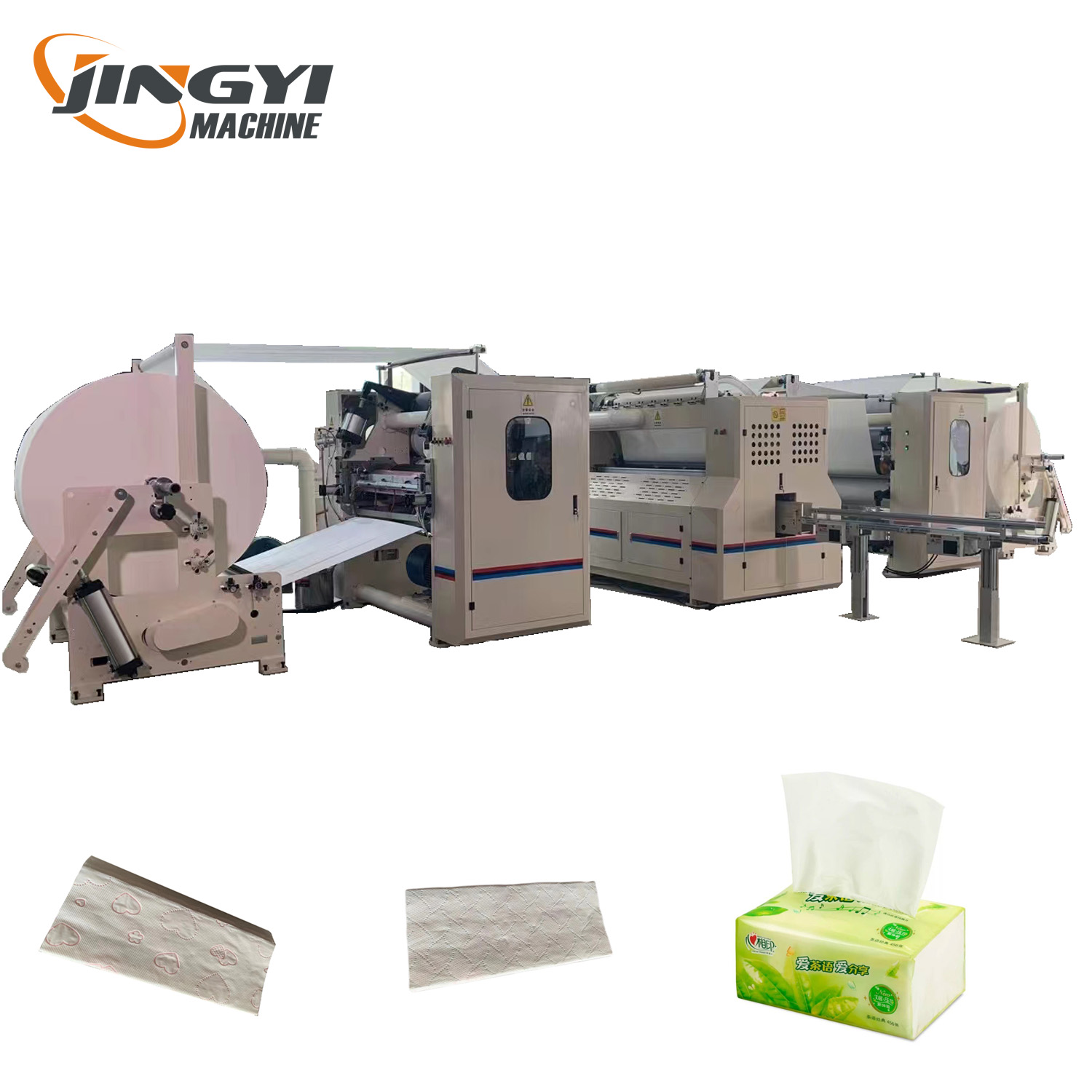

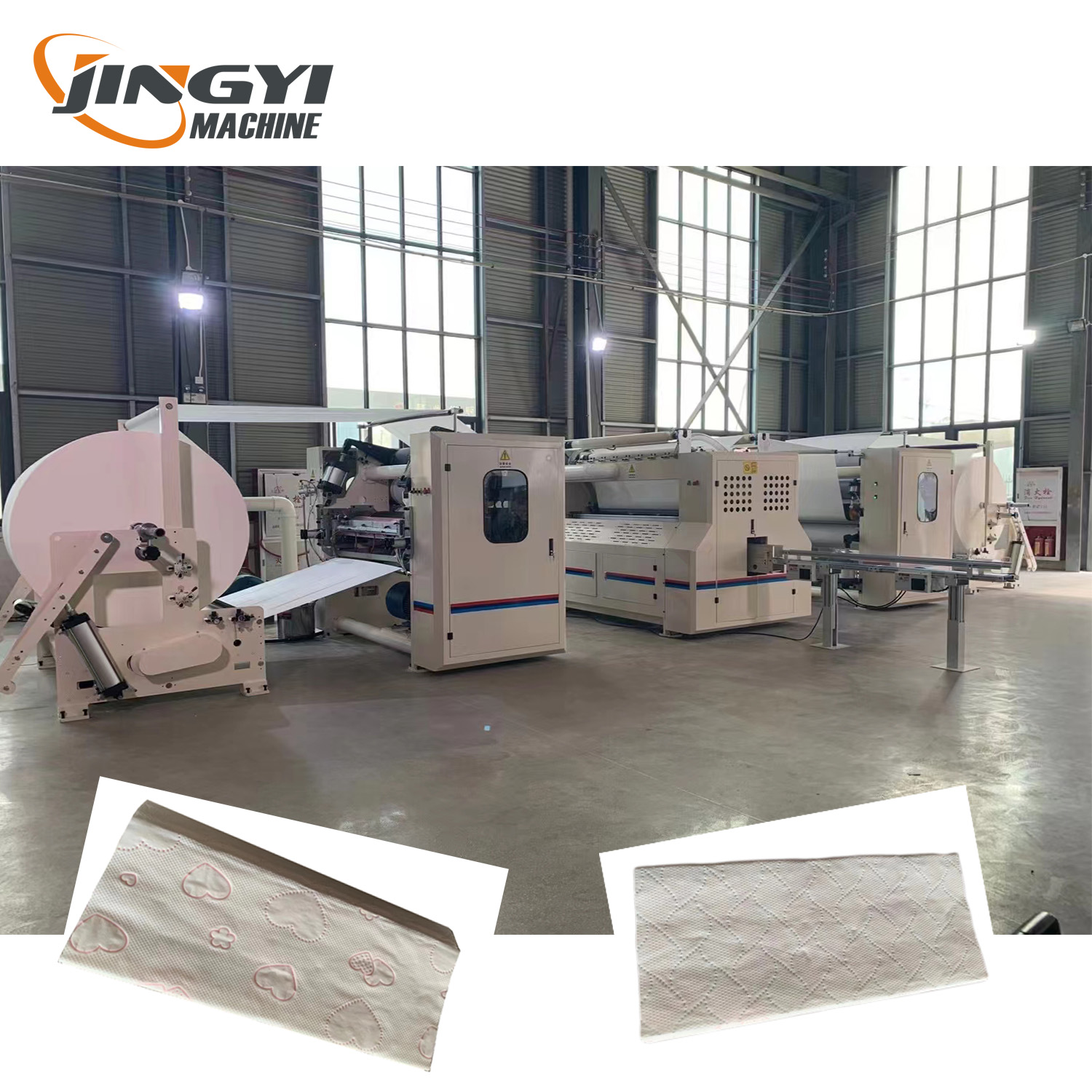

Automatic facial tissue production line is consist of facial tissue folding machine, log saw cutting machine, single bag packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products.
| Machine model | Machine configuration | Output produce |
| CS-180/2-14L facial tissue folding machine |
| (800~1000)*14*60*8 =5,376000~6,720,000pcs |
| Facial Tissue Auto Log Separator | 8-10 logs per minute | |
| DHX-150 log saw cutting machine | Design speed: about 150cuts/min
| |
| T80SD automatic facial tissue packing machine |
| |
| Belts conveyor | To connect the log saw cutting machine with packing machine |
Can order steel to rubber embossing rolls,pneumatically separated.
| Machine model | CS-180/2-14Lmm |
| Finished products unfolded size | 180*210mm±2mm |
| Folding products size | 90*(120-210)±2mm |
| Raw material width | 400-2800mm |
| Raw material diameter | 1100mm |
| Raw material core diameter | 76.2mm |
| Out put (8 hours) | 8000~10000Kg |
| Embossing unit | Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation |
| Power | 7.5KW Main motor |
| 3.0KW(2set) Unwind motor | |
| Vacuum suction unit | 47KW Fan |
| Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |
| Driving system | Timing belt |
| Dimension | 8700X3500X7000mm |
| Weight | 12~13T |
Under the condition of standard extraction number 130 and standard layer number 3,The efficiency can reach 8-10 logs per minute. When leaving the factory, the machine will be adjusted to 8 rolls/min,If there is any special requirement for speed, it should be informed in advance. After the speed is fully adjusted, the customer cannot raise or slow down the speed unilaterally,The related operation can only be completed with our assistance
When changing specifications, if only the amounts of paper and the weight of paper are changed, but the packaging thickness of the paper is not changed, the number of paper can be set on the touch screen without adjusting the mechanical parameters. However, if the paper packaging thickness is changed, the related mechanical structure needs to be adjusted. The whole process takes about half an hour.
The thickness of the paper that the standard machine can adapt is 50--110mm. If the thickness of the paper is less than 50mm or more than 110mm, it needs to be customized.
The standard machine can accommodate a width of 75-110mm (or 150-220mm). If the width is less than 75 (or 150) or greater than 110 (or 220), it needs to be customized.
When leaving the factory, all of the mechanical and electrical parameters in the case of customers no special requirements, all will according to the standard width to adjust (for example, the machine of 9 lines, is 1.8 meters in length, standard, then, all of the mechanical and electrical parameters in the case of customers no special requirements, all can adjust by the standard of 1.8 meters) if the customer wants to change the width of paper, for example by 1.8 m to 1.5 m, then the changes will be bigger, almost had to spend four hours. But When the range of 40mm changes (for example, the current width is 1.8 meters, so when the paper width changes between 1.84m and 1.76m), no adjustment is required.
Paper separating deviation: +/-2draws
Power Supply:AC380V Frequency:50HZ; Power:3KW; Air Pressure:0.6---0.8MPa; Gas Consumption:1.5m³/min; PLC,Servo Motor,Servo Driver,HMI are all Siemens brand.
| The length of the none cut off facial tissue | minimum 500mm |
| The Height of tissue | 30~130mm |
| Design Speed | 150cuts/min |
| operating speed | 120cuts/min |
| Round blade outer diameter | Φ610mm |
| Finished products specification | 70~300mm |
| Paper width | 70~110mm |
| Cutting Length | 70~300mm |
| Left-over Length | 20~65mm |
| Power | 11KW |
| power supply | 380V 50Hz |
| Air source | 0.5~0.8MPa |
| Machine Size | 4600*1700*2500mm |
| weight of machine | 2300~2600kg |
| brake | Parameter setting (auto/manual) |
| Stepping sharpening knife | Parameter setting (auto) |
| Pneumatic sharpening knife | Parameter setting (auto/manual) |
4. T80SD Automatic Facial Tissue Packing Machine
| Technical Specifications | Description | Remark |
| Scope of application | Facial tissue, hand towel,napkin tissue | |
| Infeed | ASF Full automatic | Five sections of intelligent flexible feeding mode |
| Max.design mechanical speed | ≤ 80 bags/min | Related to specification of packing |
| Max. stable speed | 65 bags/min | Related to specification of packing |
| Tissue length range (finished product) | 120 mm-210 mm | Over this size can be customized |
| Tissue height range(finished product) | 40 mm-100 mm | |
| Tissue width range(finished product) | 90 mm-105 mm | |
| Machine size | L*W*H= 4600 *3620 *1770 mm | Standard size |
| Machine weight | About 3T | |
| Packing raw material | CPP film | |
| Film Thickness | 0.04mm-0.055mm | |
| Max film diameter | 400 mm | Over this size can be customized |
| Film core diameter | 76mm | In accordance with international standards |
| Max film width | 340mm | Over this size can be customized |
| Air pressure | Minimum air pressure 5MPA | Equipped by user |
| Power supply | 380V/50HZ | Following China's electric power standard |
| Total drive power | 4.8 KW | The sum of main motor, servo motor, Sum of speed regulating motor power |
| Total heating power | 4.6 KW | Side seal, side sealing part of heating power combined |
| Voltage variation | +/-10% | In accordance with international standards |
| Packing format | Three-dimensional wrap | vertical sealing first and then two side sealing |
