JY-JTZ
Jingyi
8441.8090
Equipment Description:

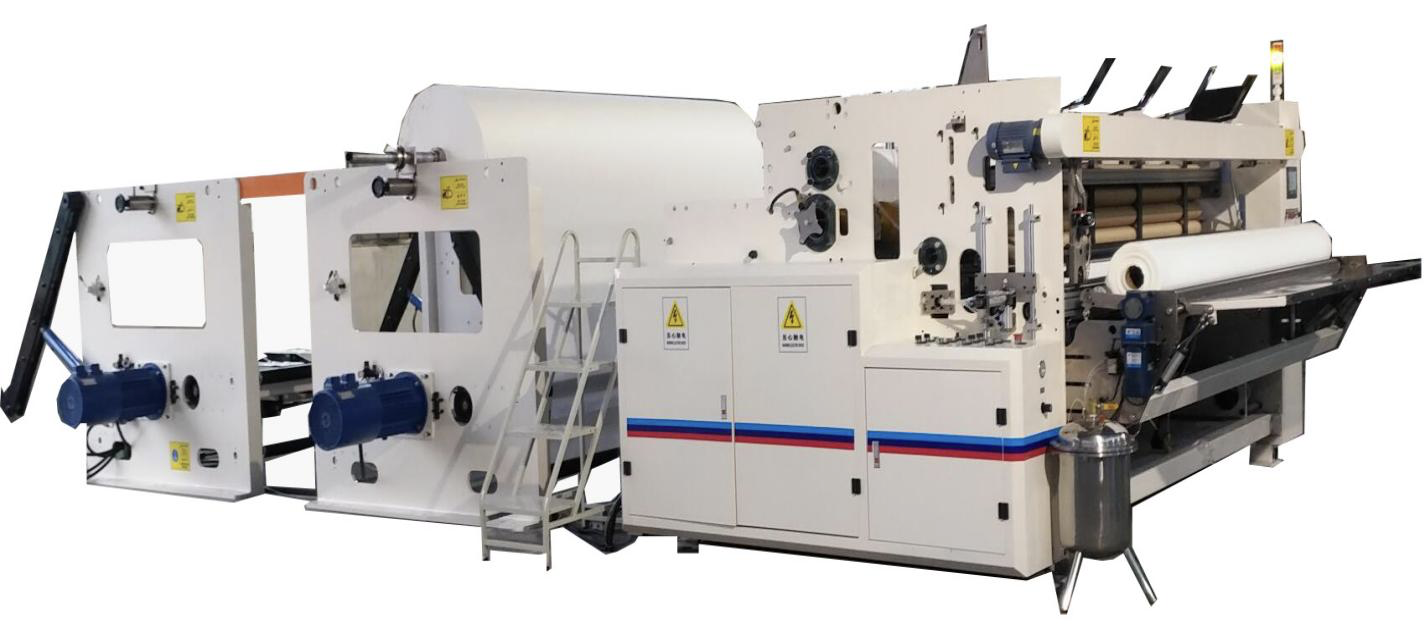

1. This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination.
Main Technical Parameter:
Max jumbo roll width | 1750mm (other size can be ordered) Can order from 1200mm to 2800mm |
Max jumbo roll diameter | φ1100mm(for bigger size can be ordered) |
Jumbo roll inner diameter | 3inches (76.2mm) |
Finished products diameter | φ80-150mm |
Perforated distance | 100-150mm (other size can be ordered) |
Production speed | 0~180m/min |
Machine power | 7.5~22kw (depends on machine model) |
Roll core unit | With or without roll core |
Jumbo roll stands | 1~3 stands (standard is 2) |
Embossing unit | Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller) |
Jumbo roll loading | With air cylinder loading |
Parameter setting | Man-machine interface operation, Touch screen |
Machine overall dimension | 3500*2500*1500~6000*3500*1500mm |
Machine weight | 1500~4500KG (approximately) |
Remote controlling | Depends on customer |
Lamination unit | Can be ordered |
Colorful lamination | Can be ordered |
Machine Main Description

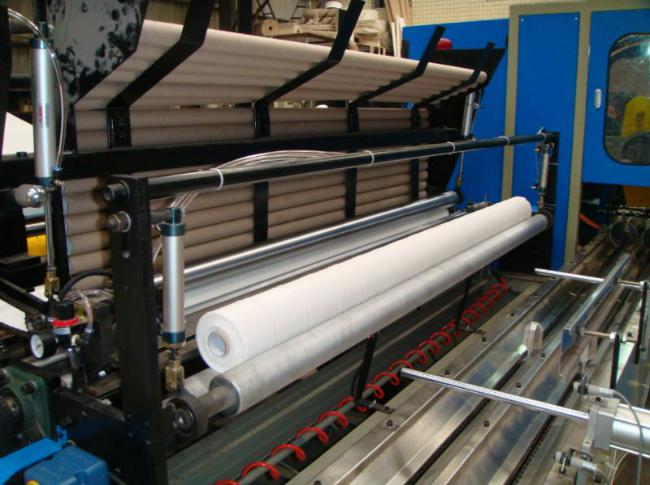

Automatic feeding the core and unloading the roll automatically, machine can do both with core and without core

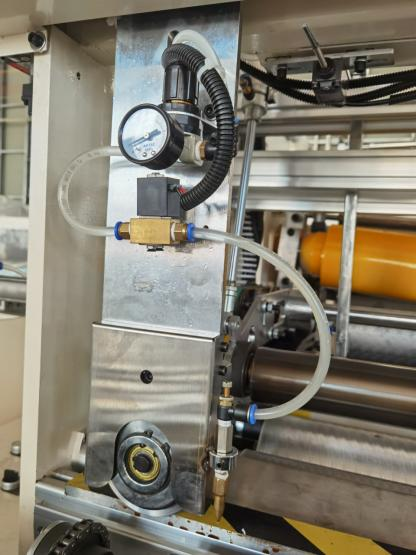

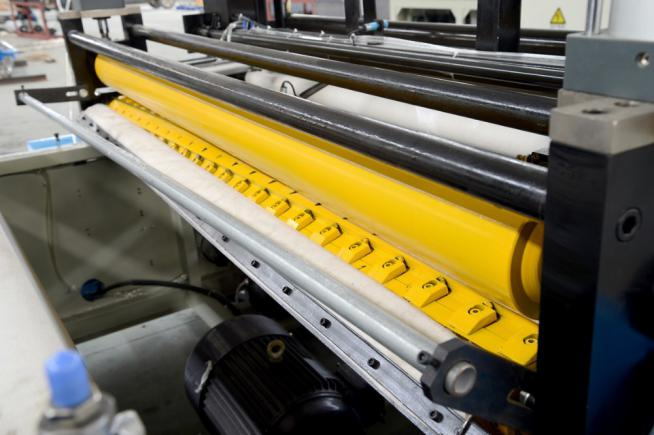

Automatic cutting and spray the glue to seal the roll tail
High precision perforation distance: 100-150mm, 4 anvil Blades
Steel to rubber embossing unit. Rubber roller lifetime is about 4-5 years, Embossing depth is 0.8-1.2 mm according to embossing pattern

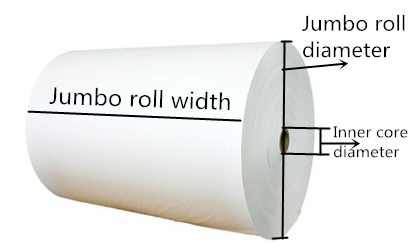

Jumbo roll, 1-3 ply, 14-30 gsm toilet paper or kitchen towel, max jumbo roll diameter is 1100mm, inner core diameter is 76.2 mm.
synchronous belt

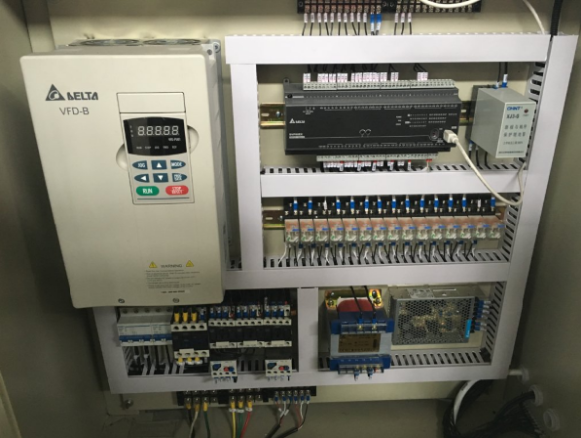

PLC and frequency inverter is Taiwan Delta, we use this system for more than 10 years, running very stable. If want to change other brand need to mention and add price difference.

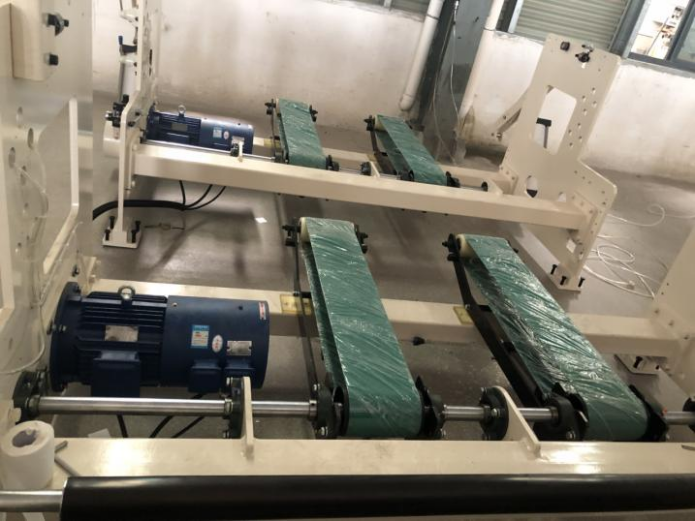

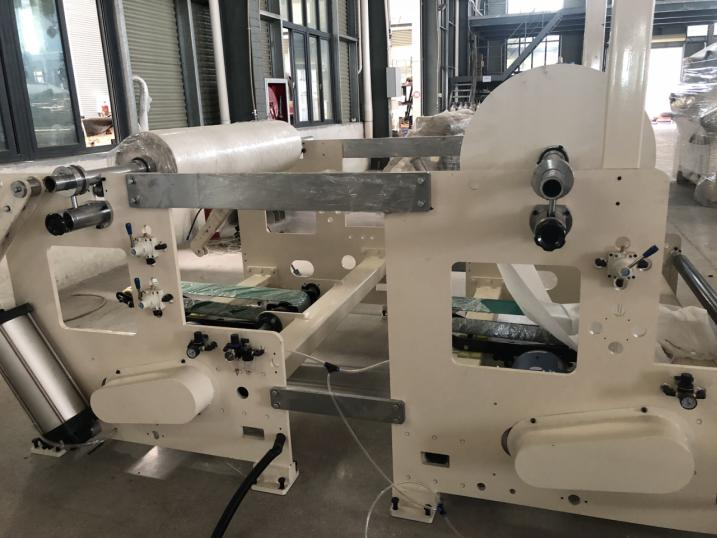

Two wall type structure jumbo roll back stands, Pneumatic lifting the jumbo roll

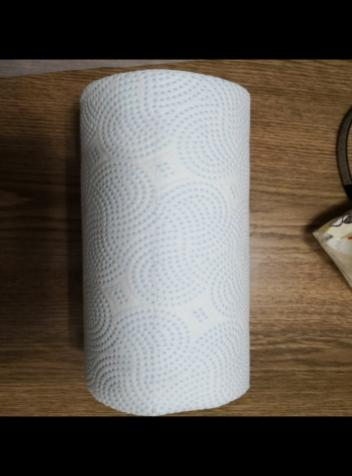

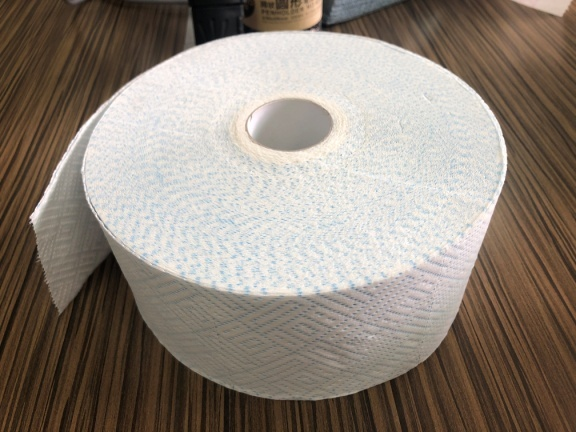

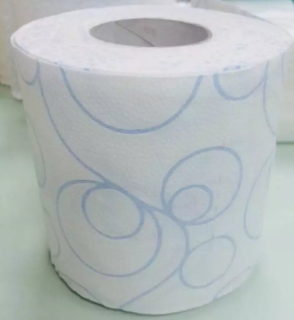

Finished Product Samples, roll diameter:Φ80-φ280mm, Roll Core Diameter: φ38-φ48mm, other size need to mentioned.
