JY-B20T
Jingyi
8441.8090

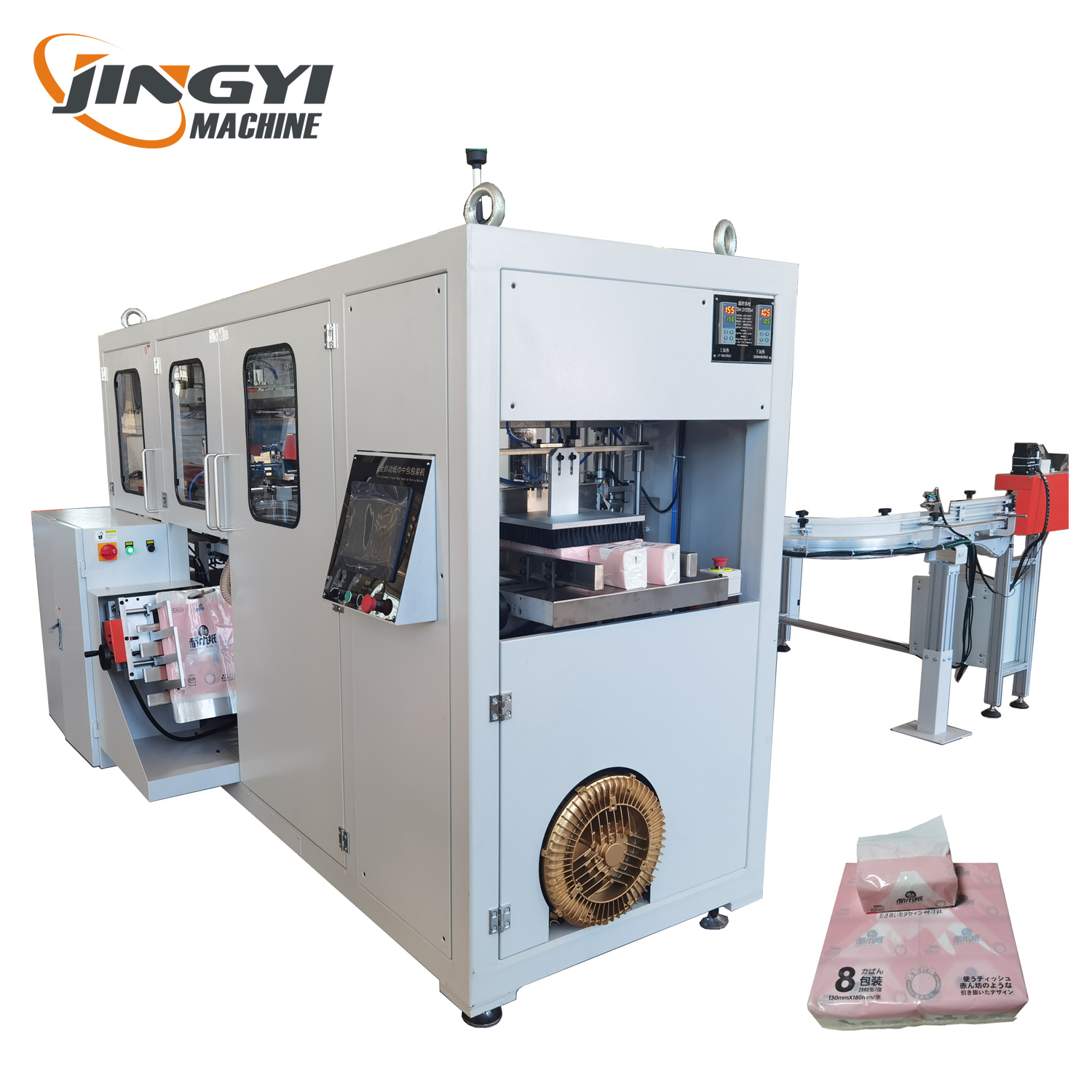

JY-B20T Fully automatic facial tissue bundle packing machine
Machine main advantages
JY-B20T automatic tissue bundle packing machine is suitable for automatically bundle packing soft drawn facial tissue, napkin and V fold hand towel paper.
Adopt servo control for paper array, paper arrangement, paper advance, paper filling in to bag, bag pulling, bag opening and seal functions. Easy to operate and maintenance.
Adopts central vacuum station management mode.
Adopts up & down heating mode by heating pipe, sufficient satisfy different kind of packaging material, can ensure good look seal and stable running.
Equipped with bag open detect function, air source management function, auto alarm when fault and display function, servo overload protection function.
Easy for single/double rows changing, easy to operate and high efficiency.
Maximum stable working speed:17 bags/min.
Machine main parameter
| Basic parameter | Description | Remark |
| Scope of product | Single film packed tissue product | Bundle packing |
| Paper feeding mode | ASF intelligent paper feeding | |
| Packing style | 1*3,1*4,1*5 2*3,2*4,2*5 | Need to be in the total packing range |
| Design speed | 20 bag/min | |
| Stable working speed | 16-18 bags/min | Relate to product specification |
| Bag film installation structure | Dual bag racks | |
| Bag storage quantity | Less than 400 premade bags | |
| Length range | 120 mm- 480 mm | |
| Width range | 135 mm- 420 mm | |
| Height range | 90 mm- 110 mm | |
| Machine dimension | L 3300 mm*W 1400 mm*H1900 mm | |
| Machine weight | About 1900 KG | |
| Premade bag material | CPP,PE film | Thickness≥0.04mm |
| Compressed air | Pressure≥0.6MPA/Flow≥30L/min | Buyer prepare |
| Power supply | 380V/50HZ | |
| Total motor power | 16 KW | |
| Total heating power | 2 KW | |
| Voltage wave range | +/-10% | National standard |
| I/O input(VDC) | 24VDC | |
| I/O output(VDC) | 24VDC | |
| Machine movement control mode | 7 shafts servo positioning control | Servos drive |
| Machine main transmission mode | Servo motors drive belts | |
| Machine color and craft | Deep grey, static spraying paint craft | |
| Bag type | Same as manually bag with handle and hole | |
| Gusset forming mode | Vacuum mould. | |
