JY-BF-600
Jingyi
8441.8090

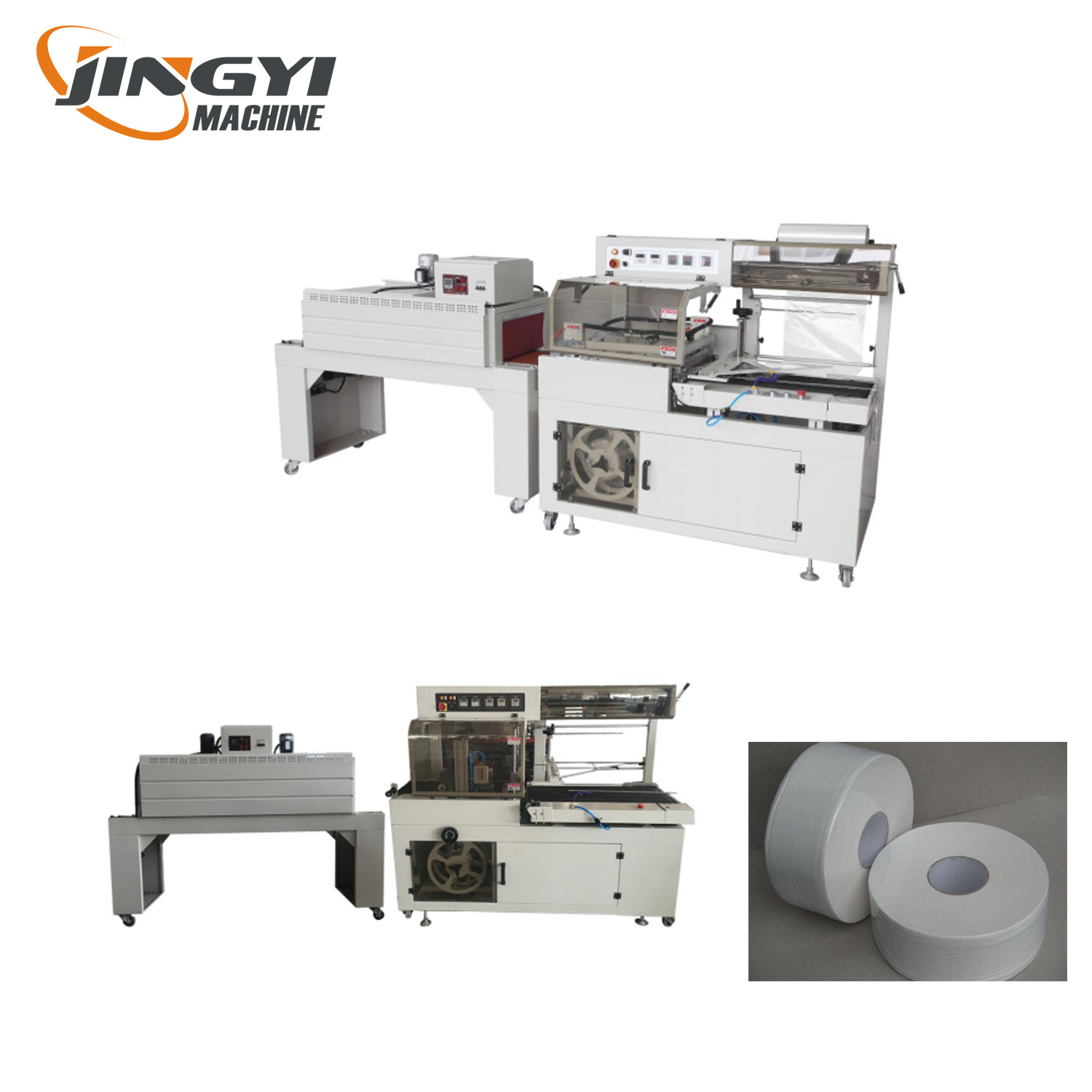

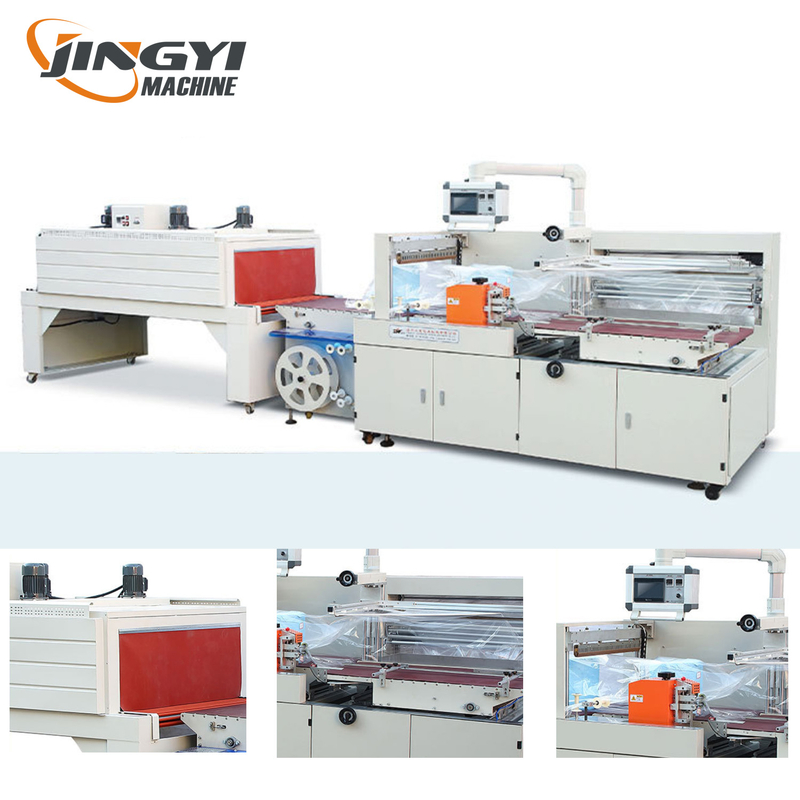

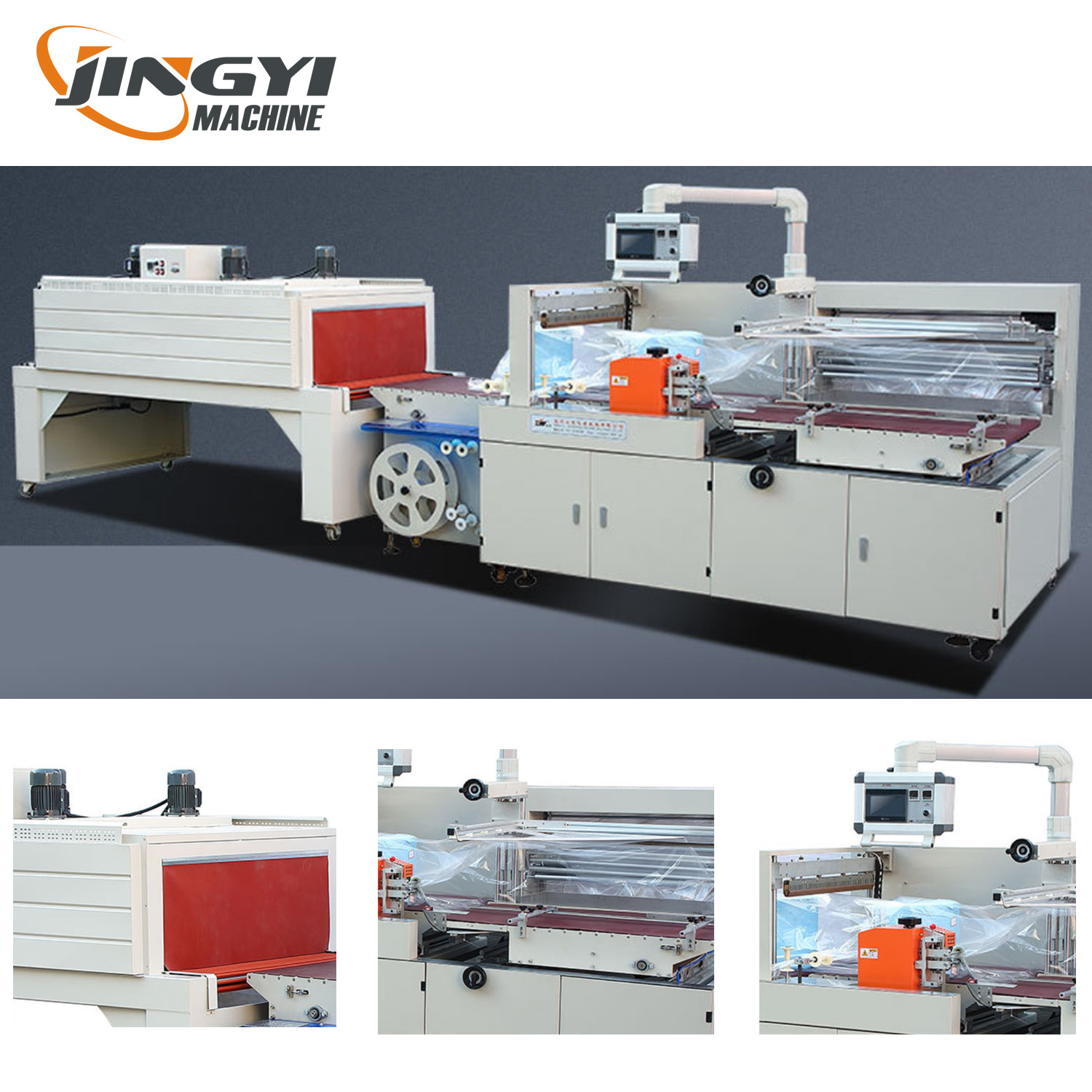

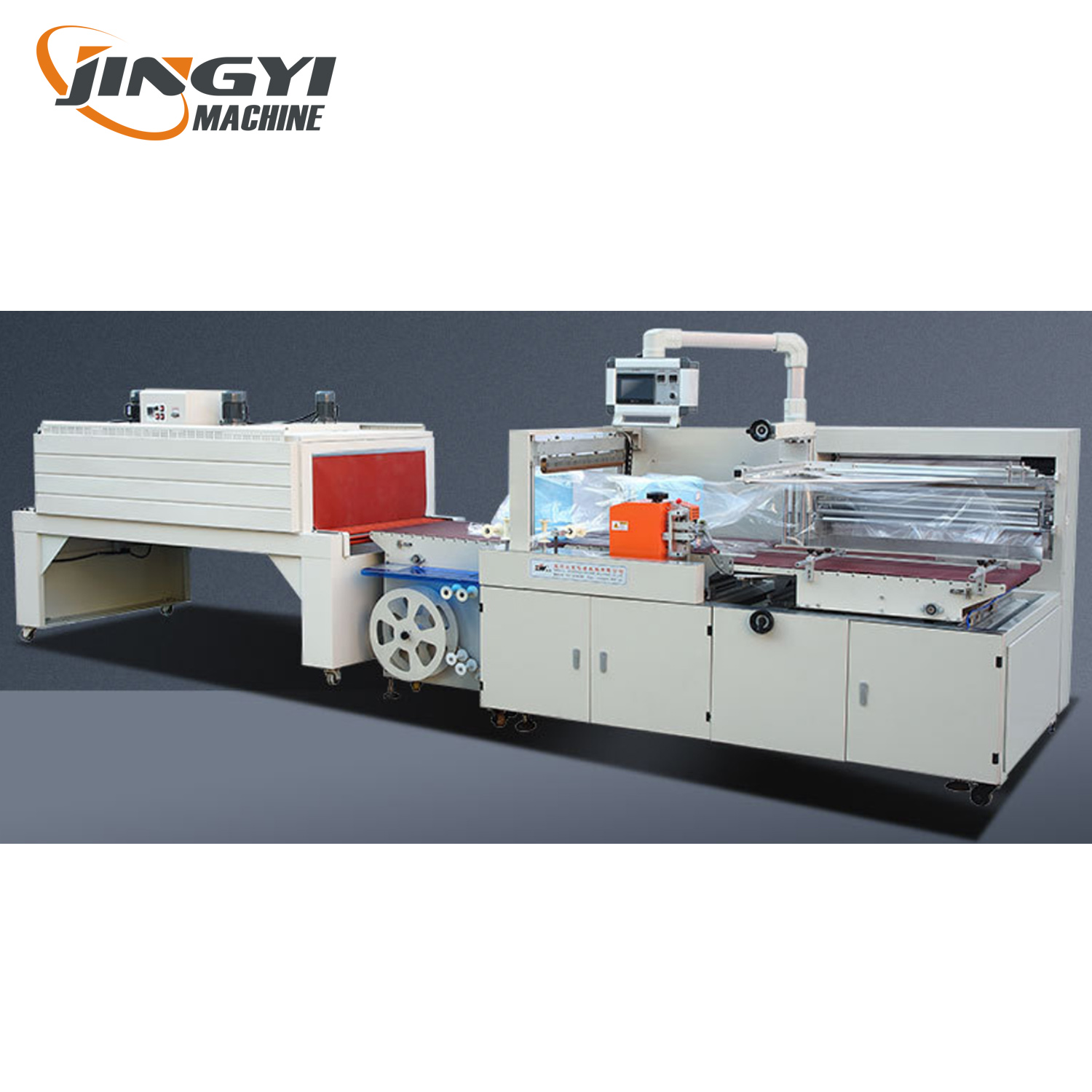

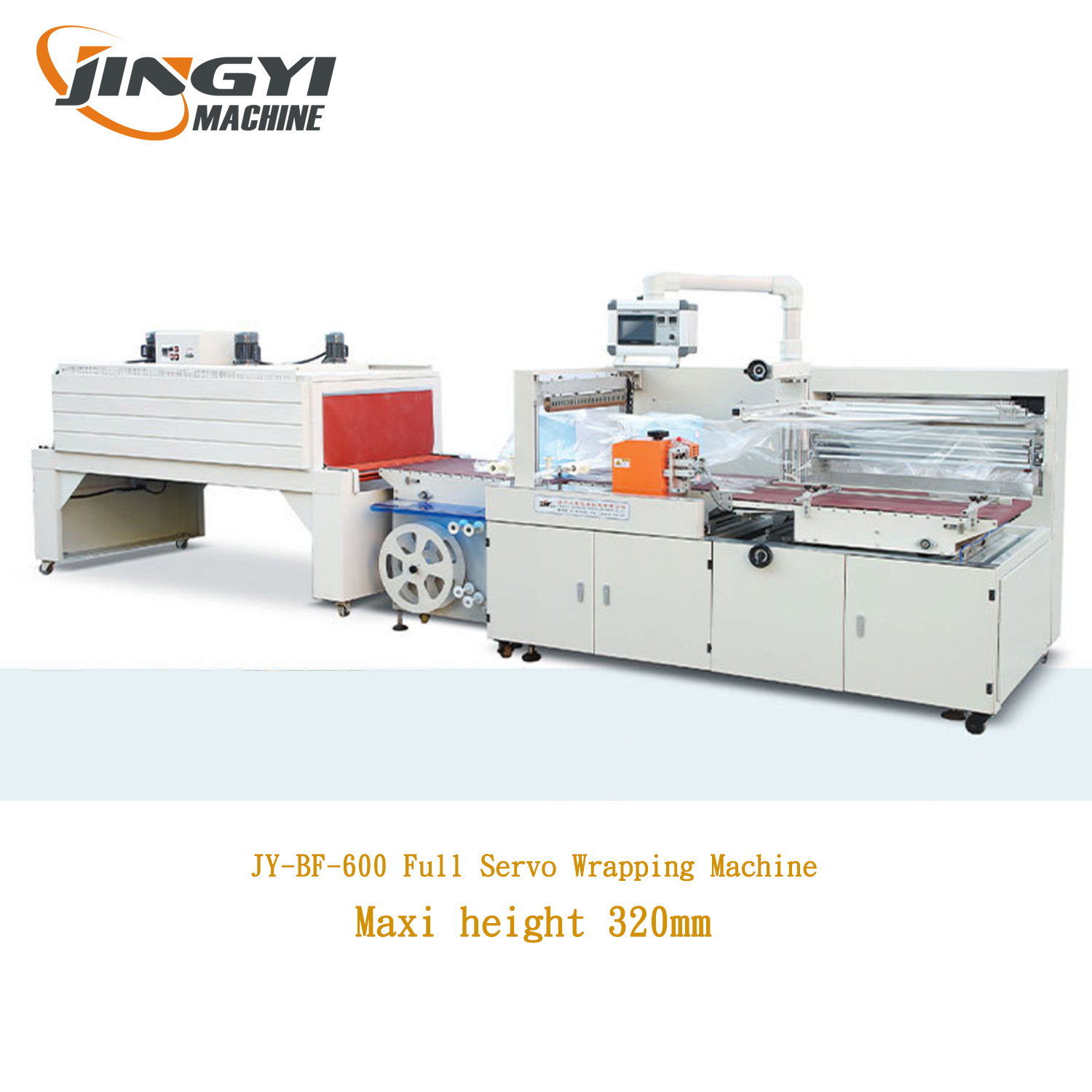

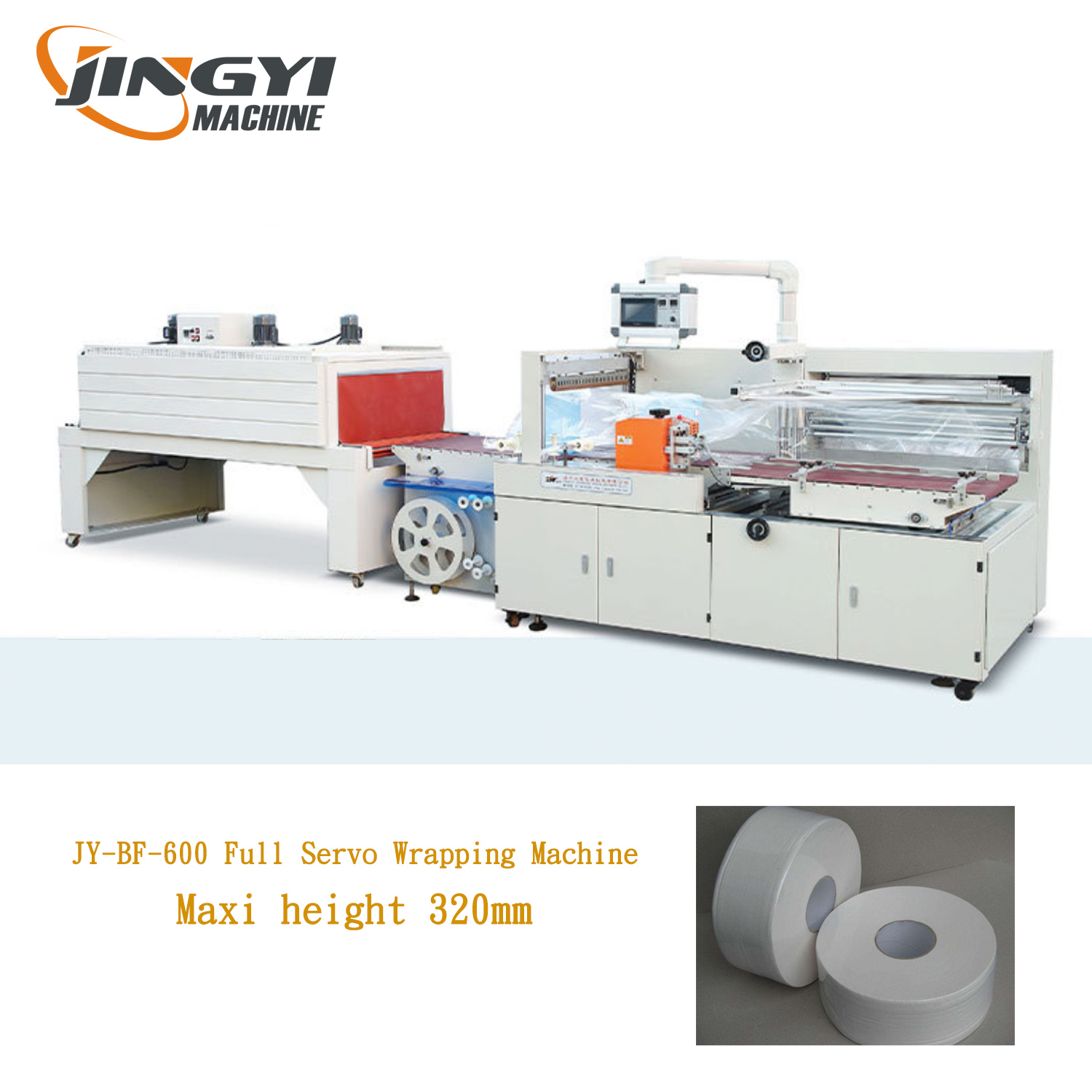

Fully Automatic Maxi Rolls Heat Shrink Packaging Machine
Video link in Youtube: https://youtu.be/w6xbcPh3F5g
Application
This machine is suitable for cosmetic, printing products, medicians, electrical products, food, drinks, hardware and so other indusrty products wrapping packing. At the same time, it is used together with a jet heat shrink packaging machine. To make the packed products with integral and good shrinking result.
Characters:
Vertical sealing (side sealing) can use the Constant temperature blade to cut continuously.
Horizontal sealing adopts constant temperature blade and lifting sealing type.
When the products dimension changes in the acceptable range, can be adjusted on machine, no need to change any mold or parts.
Two sets of sensor can auto inspect products' length on horizontal or vertical direction. Products length no limit, can pack different length products at the same time.
It's easy to operate and learn, adopts five sets of inverter to reach the accurate controlling.
Plexiglass safety door not only ensure the safety, but also monitor the production situation.
Main technical parameters
| Model | JY-BF-600 |
| Power Supply | 220V;50/60hz |
| Power | 4.5kw |
| Highest speed | 0-15m/min |
| Packing height | ≤320mm |
| Packing width | ≤650mm |
| Package size | Width + Height ≤800mm |
| Applicable film | POF folded film; |
| Platform height | 780-850mm |
| Air pressure | 5KG/M² |
| Main material | Carbon steel |
| Weight | 500KG |
JY-BF BS9540N Shrink furnace
| Model | JY- BS9540N |
| Power Supply | 380V |
| Power | 22kw |
| Conveying load | 30kg |
| Mechanical size | 2300mm*1200mm*1500mm |
| Highest speed | 0-15m/min |
| Weight | 250KG |
| Furnace channel size | 1900*950*400mm |
