Machine Main performance features:

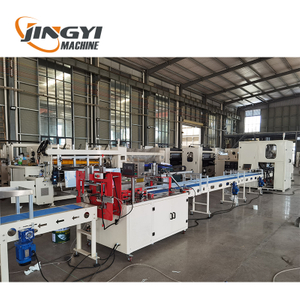

This fully automatic single roll packing machine is specially for toilet paper and kitchen towel with or without roll core package. It can achieve the process automatically from feeding, packing to side sealing. So that it averts the second pollution of hand operation in the process of package.
The whole line consist of three parts; the material delivery part, toilet tissue packing part and side sealing part.
Double paper supporting devices are applied for fast film changing.
Stopping the machine in selected position, no sticking to the knife and no wasting packing film.
It may select hot-melt date printer, gusset device.
Machine main technical parameters:
Technical Specification | Description | Remarks |
Application Range | Single Toilet paper with core or coreless | |
Feeding type | Automatic Feeding System | V Grade |
Design Speed | 0-220rolls/min | Depends on the roller size |
Stable Speed Rolls with core Speed | With core：0-200rolls/min Without Core:0-120rolls/min | |
Packing Film Structure | Double Rollers | |
Toilet rolls diameter | 80mm-120mm | |
Roll length | Withcore:80-200mm without core:80-170mm | |
Module | 2Sets | Roller Diameter:80mm～120mm |
Dimension | 5500mm*3300mm* 1600mm | |
Weight | About 1800KG | |
Packing material | Double side air through BOPP、SPP, CPP | Choose by buyer |
Film thickness | 0．018mm-0．03mm | Choose by buyer |
Roller Max Dia. | 380mm | |
Roller Inner Dia. | 70-76mm | National Standard |
Film Roller Max Width | 430mm | |
Voltage | 220V/50HZ | National Standard |
Total Power | About 12 KW | |
Cutting blade | Double blade |
