JY-XPZ-JRT
Jingyi
8441.8090

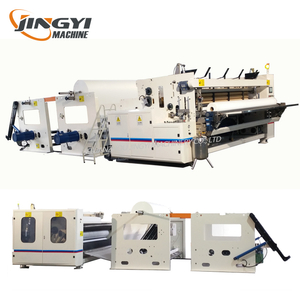

Automatic Toilet Paper JRT Maxi Roll Rewinding Machine
Main Technical Parameter:
| Max jumbo roll width | 1750mm (other size can be ordered) Can order from 1200mm to 2800mm |
| Max jumbo roll diameter | φ1100mm(for bigger size can be ordered) |
| Jumbo roll inner diameter | 3inches (76.2mm) |
| Finished products diameter | φ80-280mm |
| Perforated distance | 100-150mm (other size can be ordered) |
| Production speed | 0~250m/min |
| Machine power | 7.5~22kw (depends on machine model) |
| Roll core unit | With or without roll core |
| Jumbo roll stands | 1~3 stands (standard is 2) |
| Embossing unit | Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller) |
| Jumbo roll loading | With air cylinder loading |
| Parameter setting | Man-machine interface operation, Touch screen |
| Machine overall dimension | 3500*2500*1500~6000*3500*1500mm |
| Machine weight | 1500~4500KG (approximately) |
| Remote controlling | Depends on customer |
| Lamination unit | Can be ordered |
| Colorful lamination | Can be ordered |
Equipment Description:
1. This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination.
2. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators.
3. With automatic roll core feeding unit, without manual roll core feeding, after rewinding will automaticly push out the log, and immediately rewind again. Can adjust the specification of the roll core easily.
4. With international advanced PLC programmable controlling technical, man-machine interface operation table. The production data and technical parameters show on touch screen.
5. With high precise perforation blades, lower noise, clearer perforation, can adjust the perforating distance with bigger range.
6. Jumbo roll tension controlling system, Pneumatic lifting the jumbo roll;
7. Can use the steel to steel embossing unit for point to point embossing rollers, make the paper softer, and double layers match well.
8. This equipment is durable and wearable with simple operation and maintaining.
